Container Dimensions

Standard Container. STANDARD 20′ x 8′ x 8’6

Containers suitable for all kinds of dry cargo, pallets, bags, boxes, etc.

Dimensions

Length

5,898 mm

Width

2,352 mm

Height

2,393 mm

Door Opening

Width

2,340 mm

Height

2,280 mm

Tare Weight

2,300 kg

Maximum Load

28,180 kg

Capacity

33.2 m3

Total Maximum Load

30,480 kg

Standard Container 40′ x 8′ x 8’6

Containers suitable for any dry cargo, pallets, bags, boxes, etc.

Dimensions

Length

12,032 mm

Width

2,352 mm

Height

2,393 mm

Window Opening

Width

2,340 mm

Height

2,280 mm

Tare Weight

3,750 kg

Max Load

28,750 kg

Capacity

67.7 m3

Total Max Load

32,500 kg

Standard Container. STANDARD HIGH CUBE 40′ x 9′ x 9’6

Containers suitable for any dry cargo, pallets, bags, boxes, etc.

Dimensions

Length

12,032 mm

Width

2,352 mm

Height

2,896 mm

Window Opening

Width

2,340 mm

Height

2,555 mm

Tare Weight

4,160 kg

Max Load

28,200 kg

Capacity

76.4 m3

Total Max Load

32,100 kg

Open Top Container. Open Top 20′ x 8′ x 8’6

Removable tarpaulin roof. Specifically designed for heavy or oversized loads. Allows top loading/unloading. Examples: Machinery, marble, etc.

Dimensions

Length

5,898 mm

Width

2,345 mm

Height

2,346 mm

Window Opening

Width

2,300 mm

Height

2,215 mm

Tare

2,360 kg

Max. Load

28,120 kg

Capacity

33.4 m3

Total Max. Load

30,480 kg

Width

2,184 mm

Length

5,492 mm

Open Top Container. Open Top 40′ x 8′ x 8’6

Removable tarpaulin roof. Specifically designed for heavy or oversized loads. Allows top loading/unloading. Examples: Machinery, marble, etc.

Dimensions

Length

12,024 mm

Width

2,340 mm

Height

2,244 mm

Window Opening

Width

2,324 mm

Height

2,324 mm

Tare

2,360 kg

Max. Load

30,140 kg

Capacity

65.7 m3

Total Max. Load

32,500 kg

Width

2,184 mm

Length

11,874 mm

Refrigerated Container. Refrigerated Container with controlled temperature. 20′ x 8′ x 8’6

Has its own cooling unit. Designed for loads that require temperature control below 0 ºC, such as frozen meat, fish, etc.

Dimensions

Length

5,444 mm

Width

2,268 mm

Height

2,272 mm

Window Opening

Width

2,276 mm

Height

2,261 mm

Tare

3,080 kg

Max. Load

30,480 kg

Capacity

28.1 m3

Total Max. Load

32,480 kg

Width

Length

Refrigerated Container. Refrigerated Container with controlled temperature. REEFER 40′ x 8′ x 8’6

Has its own cooling unit. Designed for loads that require temperature control below 0 ºC, such as frozen meat, fish, etc.

Dimensions

Length

11,561 mm

Width

2,280 mm

Height

2,249 mm

Window Opening

Width

2,280 mm

Height

2,205 mm

Tare

4,800 kg

Max. Load

27,700 kg

Capacity

59.3 m3

Total Max. Load

32,500 kg

Width

2,184 mm

Length

11,874 mm

Refrigerated Container. High Cube Refrigerated Container. HIGH CUBE REEFER 40′ x 8′ x 9’6

Has its own cooling unit. Designed for loads that require temperature control below 0 ºC, such as frozen meat, fish, etc.

Dimensions

Length

11,561 mm

Width

2,280 mm

Height

2,684 mm

Window Opening

Width

2,276 mm

Height

2,600 mm

Tare

5,000 kg

Max. Load

26,000 kg

Capacity

62.7 m3

Total Max. Load

32,500 kg

Width

Length

Insulated Container. Insulated Container. CONAIR 20′ x 8′ x 8’6

No cooling system. Ready for loads that require constant temperature, such as apples, fruits, etc.

Dimensions

Length

5,444 mm

Width

2,300 mm

Height

2,250 mm

Window Opening

Width

2,300 mm

Height

2,215 mm

Tare

2,780 kg

Max. Load

24,220 kg

Capacity

29.8 m3

Total Max. Load

Width

Length

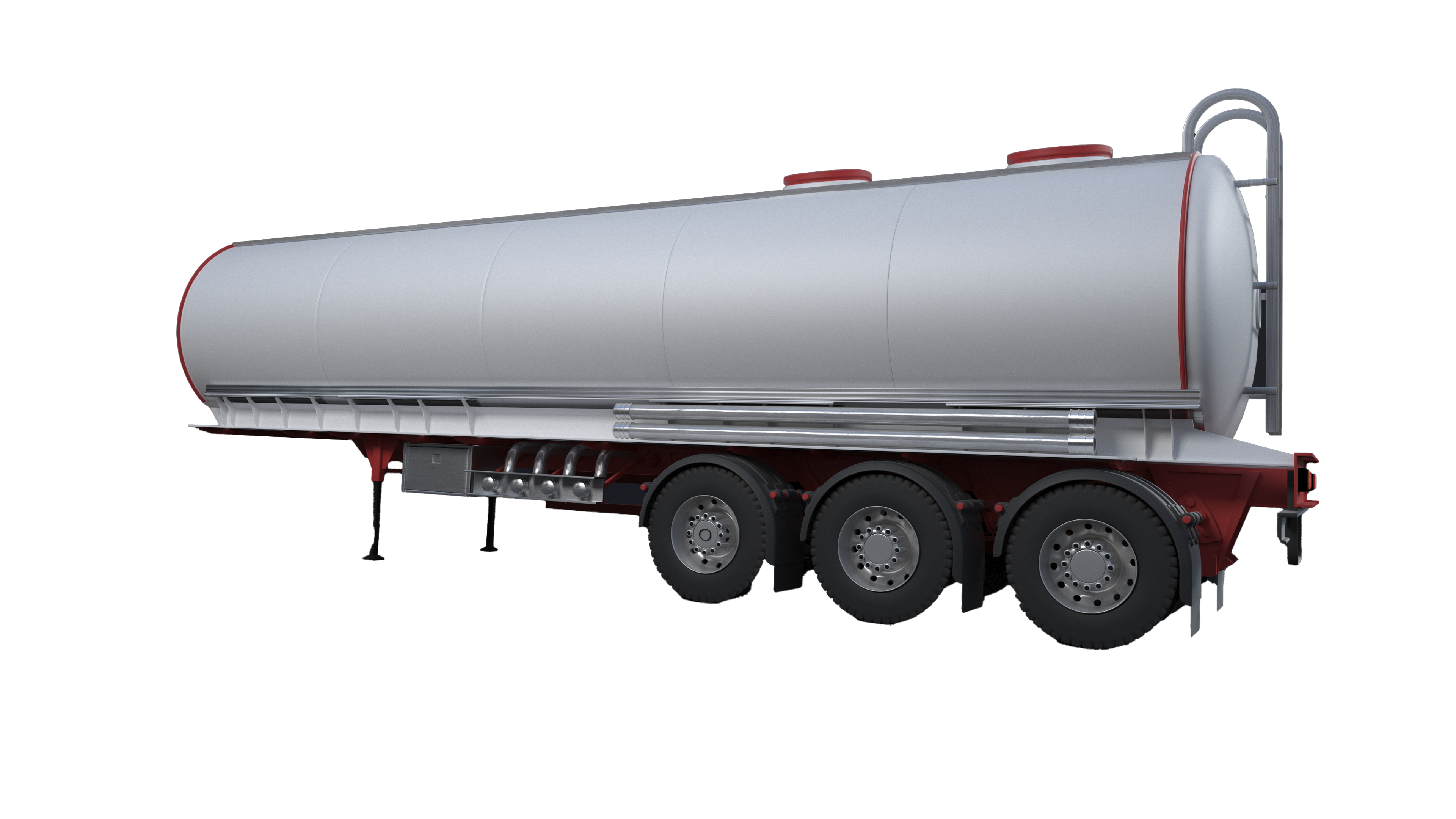

Tank Containers (Iso Tanks)

There are many types and designs. For corrosive chemicals, oils, wines, food-grade, heated special cargoes, etc.

Flat Tracks Container. STANDARD 20′ x 8′ x 8’6

For oversize cargo and other cargo that cannot be placed in a closed container.

Dimensions

Length

5,940 mm

Width

2,345 mm

Height

2,346 mm

Door Opening

Width

Height

Tare

4,030 kg

Max. Payload Capacity

28,470 kg

Capacity

33.2 m³

Total Max. Payload Capacity

32,500

Width

Length

Platform Containers. STANDARD 40′ x 8′ x 9’6

Designed for transporting large loads with fixed or detachable terminals, without wings. Example: machines, etc.

Dimensions

Length

12,132 mm

Width

2,400 mm

Height

2,135 mm

Door Opening

Width

Height

Tare

5,000 kg

Max. Payload Capacity

40,000 kg

Capacity

Total Max. Payload Capacity

45,000

Width

Length
