Container Dimensions

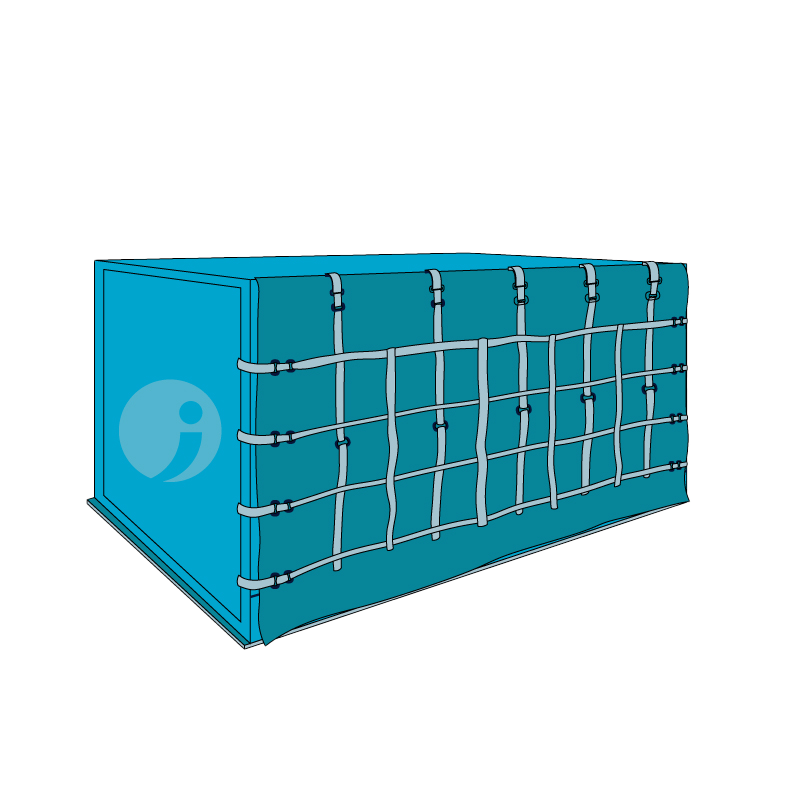

Standard Container. Container 88 x 125 x 63 inches. IATA Code AAP / AA2.

Aluminum Container. Single-sided opening 317.5 cm. Covered with a lid and net. Adaptable to hanging garments. Some may have a security door.

Dimensions

Length

317.5 cm

Width

223.5 cm

Height

162.5 cm

Door Opening

Width

2,340 mm

Length

2,280 mm

Empty Weight

230 kg.

Maximum Load

4,625 kg

Capacity

33.2 m3

Total Maximum Load

30,480 kg

Volume

9.8 m3

Aircraft Compatibility:

B747 F / B747 / A340 / A330 / B777

Standard container. Container 96 x 125 x 63″. IATA Code AMP

Aluminum Container. Single-sided opening 317.5 cm. Covered with a lid and net. Adaptable to hanging garments. Some may have a security door.

Dimensions

Length

317.5cm

Width

223.5cm

Height

162.5cm

Window Opening

Volume

10.8 m3

Height

Tare

285 kg.

Max. Load:

6,800 kg. for PMD, 4,625 kg. for PLD

Compatible with Aircraft:

B747 F / B747 / A340 / A330 / B777

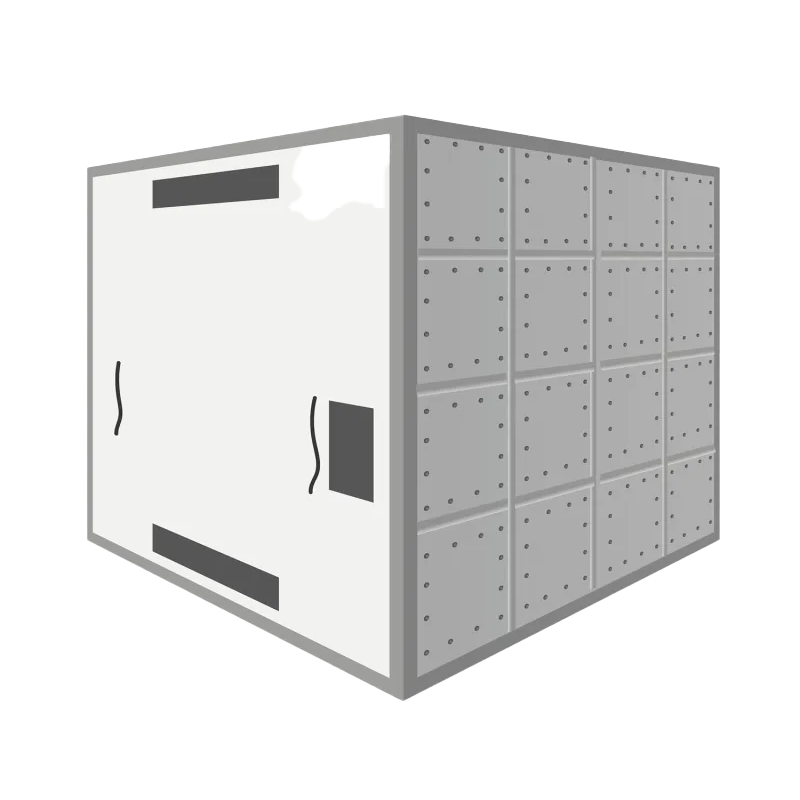

Standard container. Dimensions: 96 x 125 x 96 inches. Code: IATA AMA / AQ6.

Aluminum Container. Single-sided opening 317.5 cm. Covered with a lid and net. Adaptable to hanging garments. Some may have a security door.

Dimensions

Length

317.5 cm

Width

244 cm

Height

244 cm

Window Opening

Volume

15.7 m3

Height

Tare

85 kg.

Max. Load

1,135 kg.

Capacity

Compatible with Aircraft:

A320 / A321

M1

M2

Standard container. Code: IATA AKE.

Aluminum Container. Single-sided opening 156 cm. Covered with a lid.

Dimensions

Length

156 cm

Width

153.4 cm

Height

160 cm

Window Opening

Volume

4.3 m3

Height

Tare

75 kg.

Max. Load

1,587 kg.

Capacity

Compatible with Aircraft:

B747 / A340 / A330 / B777

M1

M2

Standard container. Code IATA AKN.

Aluminum Container. Single-sided opening 156 cm. Closed with metallic doors. Can be adapted for hanging clothes. Available with Variation Fashion. Can be transported by elevators. Sealable.

Dimensions

Length

156 cm

Width

153.4 cm

Height

160 cm

Window Opening

Volume

3.9 m3

Height

Tare

120 kg.

Max. Load

1,587 kg.

Capacity

Compatible with Aircraft:

A340 / A330

M1

M2

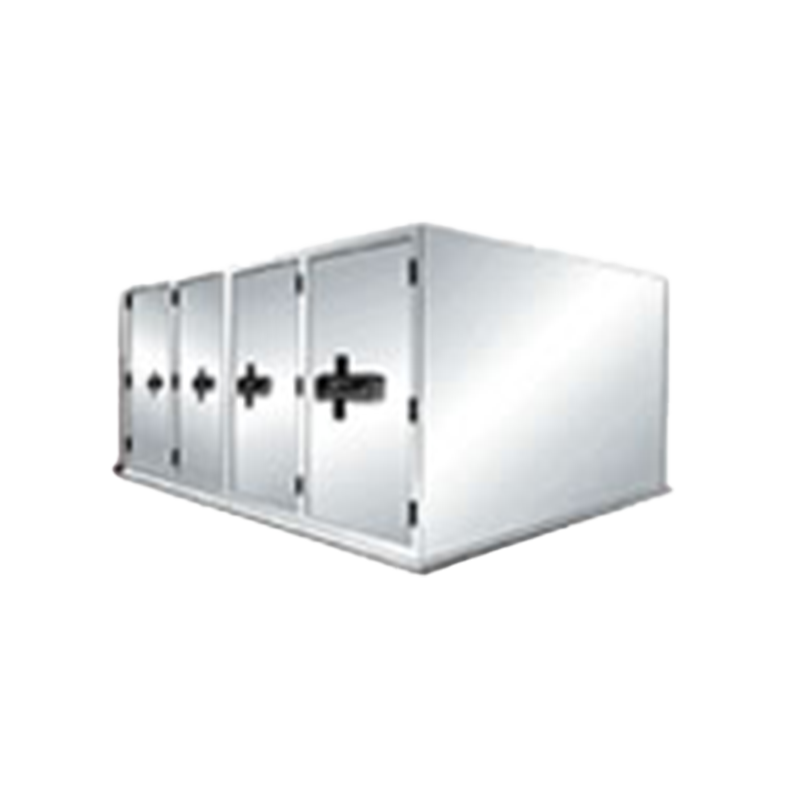

Security container 96″ x 125 x 63″ Code IATA AMP

Aluminum Container. Dust and soundproof (rubber gasket). Single-sided opening 223.5 cm. Closed with four metallic and sealed panels. Bottom rail for hangers.

Dimensions

Length

317 cm

Width

243.8 cm

Height

162.6 cm

Door Opening

Width

Length

Tare Weight

340 kg.

Maximum Load

Capacity

Total Maximum Load:

6,800 kg for PMD, 4,625 kg for PLD.

Volume

Compatible with Aircrafts:

Security container Container IATA AMP

Aluminum Container. Single-sided opening 317.5 cm. Closed with a lid and mesh. Adaptable for hangers. Some may have a security door.

Dimensions

Length

317.5 cm

Width

243.8 cm

Height

162.6 cm

Window Opening

Volume

Height

Tare

311 kg.

Capacity

Max. Load

4,625 kg.

Compatible with Aircrafts:

B747 F / Combi / Mixto A340 / A330 / B777

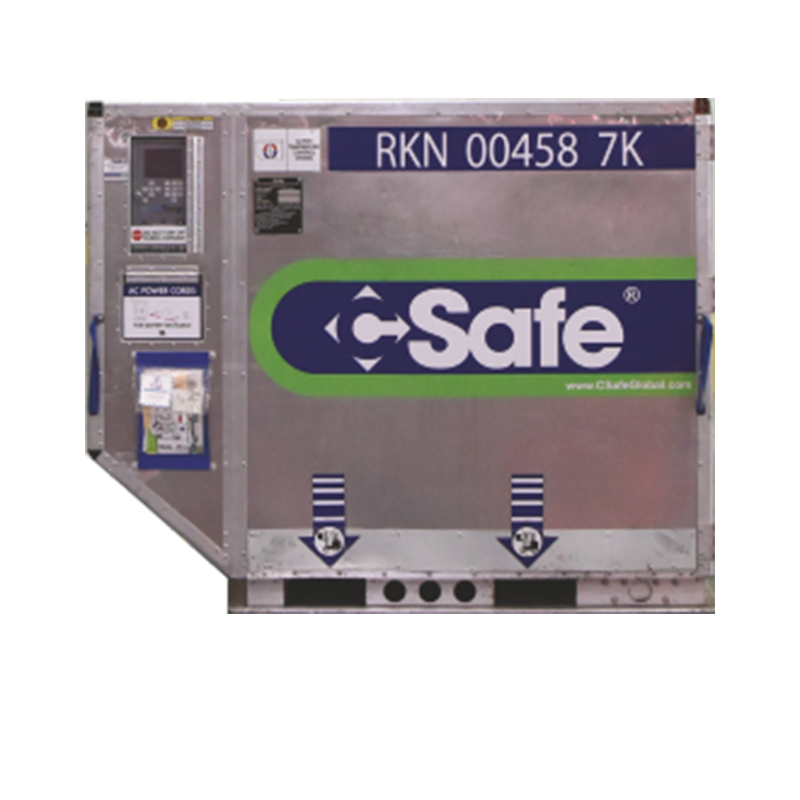

Insulated Containers. Code: IATA RKN.

Temperature range: -4 + 68° F. (Equipped with an Envirotainer thermostat for 16 size 16 alkaline batteries). Dry Ice Capacity: 180 kg block or 95 kg bulk.

Dimensions

Length

156 cm

Width

153 cm

Height

162 cm

Door Opening

Width

Length

Tare

267 kg.

Maximum Load

1,588 kg

Capacity

Total Maximum Load

Volume

3 m³

Compatible with Aircrafts:

B747 / B777 / A340 / A330

Insulated Containers. Code: IATA RAP.

Dimensions

Length

317 cm

Width

223 cm

Height

162 cm

Window Opening

Volume

8.3 m³

Height

Tare:

438 kg. according to the manufacturer

Capacity

Max. Load

6,800 kg.

Compatible with Aircrafts:

B747 / B777 / A340 / A330

Insulated Containers. Dimensions: 96 x 125 x 64 inches. Code: IATA RMP.

Polyester foam is found between the side panels. Temperature control between 0 +20 °C. Opens with a closed door. Dry ice capacity up to 400 kg and space for fan batteries.

External Dimensions

Length

317.1 cm

Width

244 cm

Height

162.6 cm

Internal Dimensions

Length

223.5 cm

Height

141 cm

Tare

600 kg.

Max. Load:

16,033 kg. F (FCA, FAS, FOB): Check the map: B747 - 4,200 kg. For PDL: B747 / Combi / A340 / A330 / B777.

Volume

10 m³.

Compatible with Aircrafts:

B747 / B777 / A340 / A330

M1

M2

Insulated Containers. Dimensions: 87 x 61.5 x 63 inches. Code: IATA JPP.

Insulated container. Polyester foam panels. Security sealed door.

Dimensions

Length

317 cm

Width

223 cm

Height

162 cm

Window Opening

Volume

8.3 m³

Height

Tare

438 kg. according to the director

Max. Load

6,800 kg.

Capacity

Compatible with Aircraft:

M1

M2

Container for Live Animals. Cattle Containers. Code: IATA KMP / HQ2.

Three-tiered aluminum panel for livestock (cows, sheep, pigs, etc.). Mounted on a 96″ x 125″ pallet. Panel with fan. Removable internal door.

Dimensions

Length

317.5 cm

Width

244 cm

Height

160 cm

Door Opening

Width

Length

Tare Weight

370 to 430 kg. with mezzanine

Maximum Load

Capacity

Total Maximum Load

Volume

Compatible with Aircraft:

B747

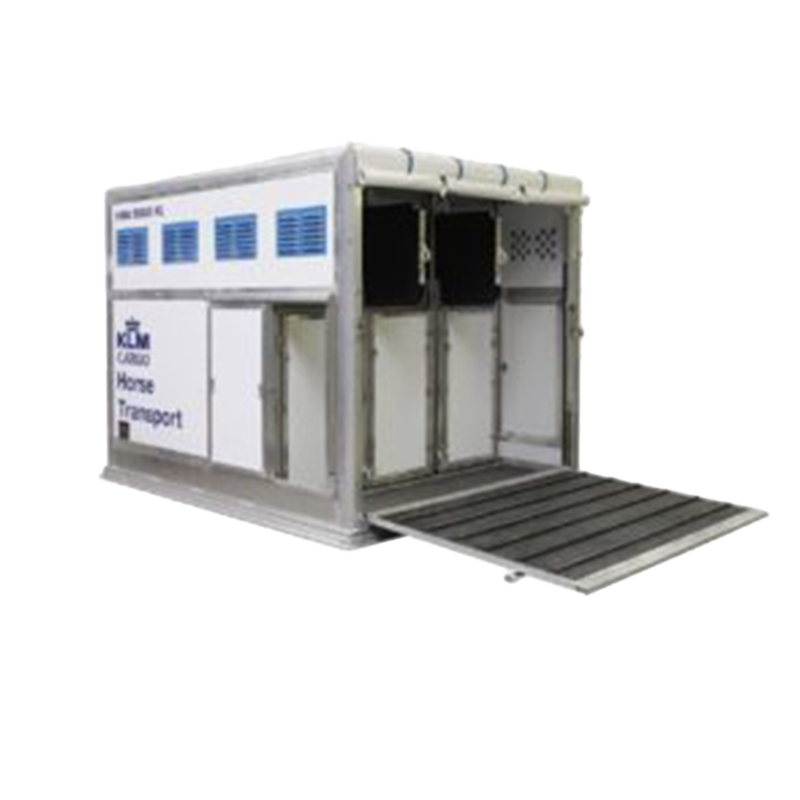

Container for Live Animals. Triple Container for Horses. Code: HMA / H6P.

Aluminum base. Soundproofing between side panels with polyester foam. Non-slip floor. Removable compartments for 1 to 3 horses. Ramp roof, front and rear doors.

Dimensions

Length

317.5 cm

Width

244 cm

Height

244 cm

Window Opening

Volume

Height

Tare

775 kg. 900 kg.

Capacity

Max. Load

Compatible with Aircraft:

B747

Pallets. Pallets 95″ x 196″. Code IATA PGF/P7

70 mm thick aluminum pallet. Secured with a twenty-foot net or cord attachment along the 498 cm sides with hooks. Vertical and horizontal compartments with securing points.

Dimensions (Type NCD)

Length

498 cm

Width

244 cm

Height

244 cm

Dimensions (Type SCD)

Width

244 cm

Length

297 cm

Tare

330 kg.

Max Load

4,625 kg

Volume

Type NCD: 26 m3. Type SCD: 31.8 m3

Length

493 cm

Compatible with Aircraft:

B747F

Pallets. Pallets A 320/321. Code IATA PKC

Aluminum pallet, 4 mm thick, with side extensions and a permanent 153 cm net on one side.

Dimensions

Length

156 cm

Width

153.4 cm

Height

114 cm

Window Opening

Volume

3.5 m3

Height

Tare

55 kg.

Capacity

Max. Load

1,135 kg.

Compatible with Aircraft:

A320 / A321.

Pallets. Pallets 88″ x 125″. Code IATA PAG/PI

Aluminum pallet with 4 mm thickness and vertical slots providing anchoring points. A permanent net of 317.5 cm on one side.

Dimensions

Length

317.5 cm

Width

223.5 cm

Height

244 cm, 297 cm, 160 cm

Window Opening

Volume

15.7 m3

Height

Tare

115 kg.

Max Load

6,800 kg.

Volume

Type NCD: 15.8m3, Type SCD: 18.9 m3, Type PLD: 10.5 m3

Compatible with Aircraft:

B747F / B747 / A340 / A330 / B777.

M1

M2

Pallets. Pallets 96″ x 125″. Code IATA PMC/P6

Aluminum pallet with 4 mm thickness and vertical slots providing anchoring points. A permanent net of 317.5 cm on one side.

Dimensions

Length

317.5 cm

Width

244 cm

Height

244 cm, 297 cm, 160 cm

Window Opening

Volume

4.3 m3

Height

Tare

125 kg.

Max Load

6,800 kg.

Available Volume:

Type NCD: 11.5m3, Type SCD: 17.3 m3, Type PLD: 20.8 m3

Compatible with Aircraft:

B747F / B747 / A340 / A330 / B777

M1

M2

Pallets. Pallets 96″ x 238.5″. Code IATA PGF/P7

Aluminum pallet with 4 mm thickness and vertical slots providing anchoring points. A permanent net of 317.5 cm on one side.

Dimensions

Length

606 cm

Width

244 cm

Height

244 cm, 297 cm

Window Opening

Volume

3.9 m3

Height

Tare

515 kg.

Max Load:

13,600 kg standard and 28,850 kg with BIG authorization

Volume

Type NCD: 32 m3, Type SCD: 38.7 m3

Compatible with Aircraft:

B747F / B747 / A340 / A330 / B777

M1

M2

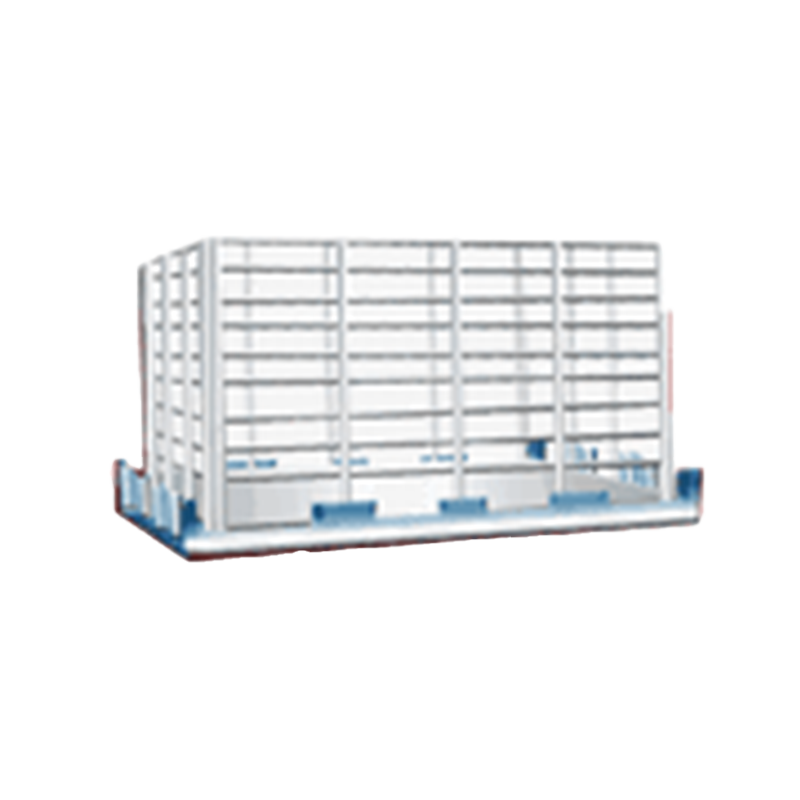

Pallets. Pallet with Stabilizers. Code IATA UMC

This is a PMC Pallet. The stabilizers are made of 3 metal panels and a door (125 cm on the side). Cargo is secured on each pallet with nets during transportation.

Dimensions

Length

317.5 cm

Width

244 cm

Height

244 cm, 297 cm

Window Opening

Volume

11.5 m3

Height

Tare

195 kg.

Max Load

6,800 kg for PMD, 4,625 kg for PLD.

Volume

Type NCD: 32 m3, Type SCD: 38.7 m3

Compatible with Aircraft:

B747F / B747 / A340 / B777

M1

M2

Pallets. Pallet with Stabilizers. Code IATA UAP

This is a PMC Pallet. The stabilizers are made of 3 metal panels and a door (125 cm on the side). Cargo is secured on each pallet with nets during transportation.

Dimensions

Length

317.5 cm

Width

223.5 cm

Height

155 cm

Window Opening

Volume

11.5 m3

Height

Tare

195 kg.

Max Load

6,800 kg for PMD, 4,625 kg for PLD.

Volume

10.5 m3

Compatible with Aircraft:

B747F / B747 / A340 / B777

M1

M2

Pallets. Pallet with Stabilizers. Code IATA BAV

An aluminum pallet based on a 223.5 x 317.5 air pallet, with removable sides made of pipe-shaped structures covered with nets during transport.

Dimensions

Length

317.5 cm

Width

223.5 cm

Height

100 cm

Window Opening

Volume

10.5 m3

Height

Tare

195 kg.

Max Load

6,800 kg for PMD, 4,625 kg for PLD.

Volume

10.5 m3

Compatible with Aircraft:

B747F / B747 / A340 / B777

M1

M2

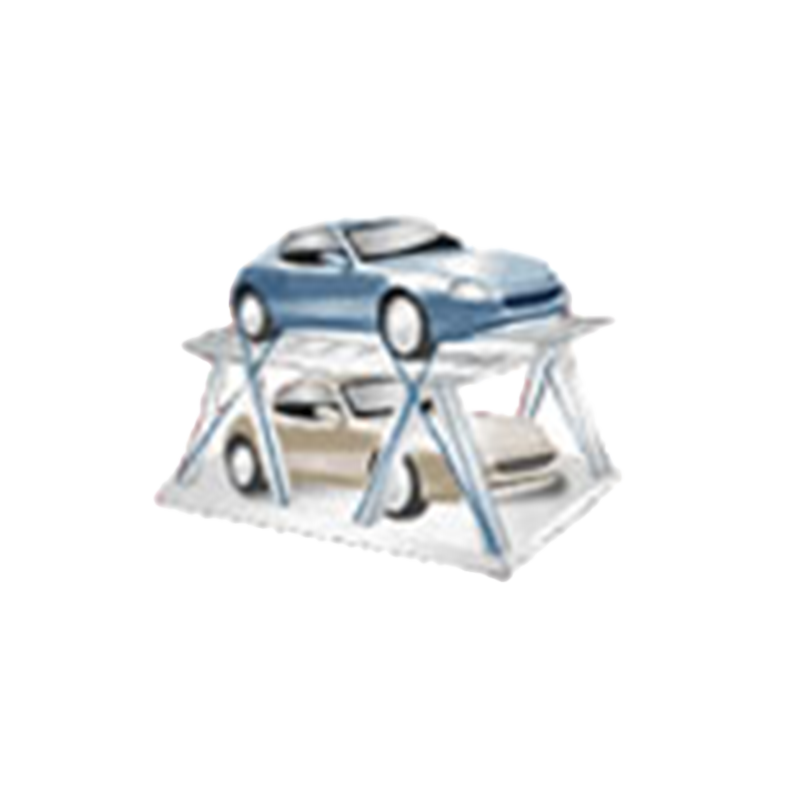

Pallets. Pallet with Stabilizers. Code IATA BAV

Two supports made of aluminum pipes, designed to provide a higher level for use with lifts, in a PZA Pallet (specially marked) or PGF Pallet. The kit cam is removable.

Dimensions

customs clearances

Maximum Vehicle Height

147 cm

Width

223.5 cm

Height

100 cm

Window Opening

Volume

10.5 m3

Height

Tare:

PZA 640 kg. PGF 825 kg., kit 320 kg.

Max Load:

5,000 kg. and 2,500 kg. for vehicles on the upper level.

Volume

10.5 m3

Compatible with Aircraft:

B747 F.
